Branching
Branching creates a separate copy of your work, so you can add new features without disrupting your current progress. It enables multiple developers or teams to work simultaneously on different features without interfering with each other.
Suppose you have an eCommerce app and you want to add a new feature, such as a product recommendation system. Instead of incorporating it directly into your main
branch and potentially causing problems, you can create a branch to work on this new feature in isolation. Once it's complete, you can integrate it back into the main
branch.
This feature is only available for Pro, Teams and Enterprise users.
Creating a branch here doesn't create one on GitHub. Branches stay and are managed solely within FlutterFlow. You can also learn more about managing custom code on GitHub.
Branching Overview
Before you create and merge a branch, it is essential to understand the general workflow. Here's what it looks like:
First, create a new branch from the main
branch. After making your changes and finalizing the
feature, merge this new branch back into the main
branch. If there are any conflicts,
you must resolve them first.
Creating a New Branch
To create a new branch from the current branch, simply go to the Branching Options button next to current branch in the Branching menu.
You can create a new branch from any existing branch, however it's most common to create new branches from main
Commits
A commit is essentially a saved snapshot of your project at a particular point in time. When you make changes to your project (such as adding new widgets, modifying actions, or configuring integrations), you can create a commit to save these changes. Each commit stores a record of what has been modified and serves as a version history for your branch, making it easy to see what has changed and roll back to previous versions if needed.
Create Commits
To create a commit, follow these steps:
- Commit Frequently: Save your work often to ensure that changes are tracked, and you have a detailed version history. You can use the keyboard shortcut (cmd + enter) for faster iteration!
- Use Clear Messages: Always provide meaningful commit messages that explain what was done.
- Test Before Committing: Ensure that the project works as expected before committing significant changes.
View Commit Changes
Once the commit is created, you can see the list of all commits under the Branch History section. Here, each commit is displayed with a timestamp, the user who made the changes, and a commit message. You can also search and filter through commits by specific users and date range.
To see the commit changes, simply click on the commit.
Commit Options
The options provided for each commit are as follows:
- View Commit: This option lets you view the details of a particular commit.
- Restore Branch to Commit: This option allows you to revert your branch to a previous commit. It creates a new commit that resets the branch to the state of the selected commit. This is particularly useful if a recent commit introduced issues, and you need to return to a stable point in the project's history.
- Copy Commit ID: Every commit is assigned a unique ID. This option allows you to copy the commit ID, which can be useful for referencing specific commits in collaboration with team members.
Commits vs. Snapshots and Versions
FlutterFlow offers multiple ways to save the state of your project at specific points in time.
- Snapshots are automatically created as you edit your project. Think of them as automatic backups that you can revert to whenever needed.
- Versions and commits, on the other hand, are manually created checkpoints. While both serve a similar purpose, commits offer more flexibility by allowing you to view the specific changes made in each commit. If you're using a plan that supports branching, it's recommended to use commits for better tracking and version control.
You can learn more about snapshots and versions here.
Merging
Merging allows you to push the changes you've made in one branch into another. For example, you may want to push your changes from a feature branch, or a branch where you are developing a new feature, back into the main
branch once it's ready to be deployed to your users.
Say your feature branch has two commits: Commit 1
and Commit 3
(which are your changes), and Commit 2
(made by a colleague in the main branch). The merge would look like the below image:
You can also merge changes from the parent branch, into the current branch. For example, say you want to pull the latest commits on main
into your feature branch. This merge would look like the below image:

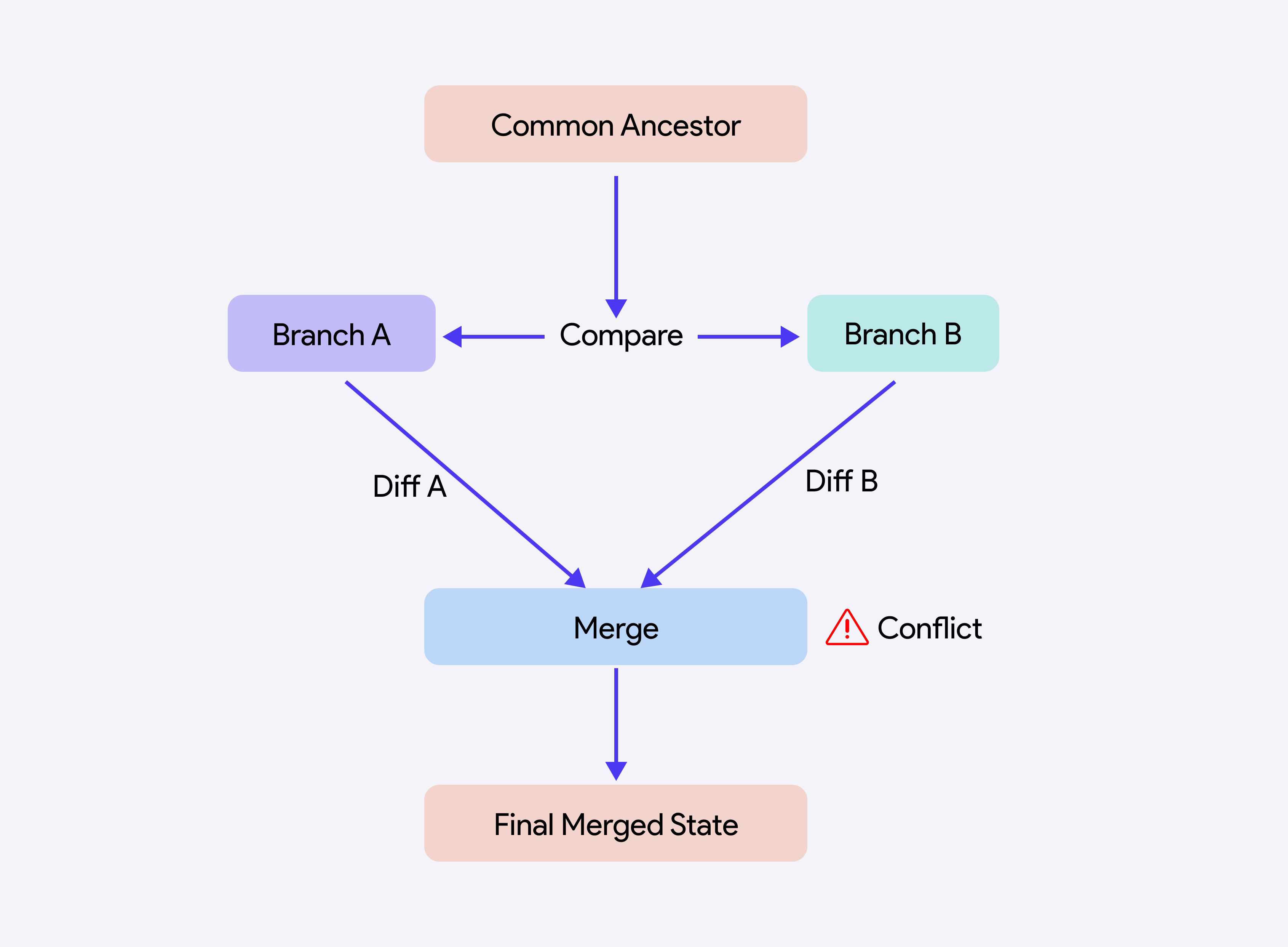

During a merge, FlutterFlow compares the changes made in both branches, if the changes don't overlap or conflict then the branches are automatically combined. If there are conflicts (for example, both branches modified the same widget property) you'll need to resolve these before the merge can be completed.
- At the moment, FlutterFlow only supports merging into the parent branch, or the branch that the current branch was created from (usually
main
) - Only the user who initiated the merge can access both the
main
branch and the branch during an ongoing merge. - Merges result in a merge commit, which means you can undo a merge by restoring the branch to a prior commit
- If you leave the project during the merge and come back, the progress you have made on the merge will be preserved.
Initiating a merge
You can initiate a merge in either direction by selecting the Branch Options button next to the current branch in the Branching Menu.
Next, you'll see a screen that will display if there are any conflicts. If you don’t have any conflicts, you can simply go ahead and click Merge Branch.
Resolve merge conflicts
A merge conflict occurs when multiple team members make changes to the same part of the project.
For example, imagine two developers, Alice and Bob, are working on the same FlutterFlow project and both decide to update the same button widget.
Developer | Branch Name | Changes |
---|---|---|
Alice | feature-alice | - Changes the button text to "Submit Form" |
- Changes the button color to blue | ||
Bob | feature-bob | - Changes the button text to "Send" |
- Changes the button color to green |
When Alice's changes are merged into the main project first, her updates will be integrated without any issues. However, when Bob tries to merge his changes afterward, a merge conflict will occur because the changes to the button text and color have already been modified by Alice.
In your project, if you get merge conflicts, here’s how you resolve them.
For certain conflicts, such as those involving variables and API configurations, you'll see a View Configuration option. Enabling this option opens the split screen view displaying changes from the new branch, allowing you to easily identify what has changed. In this view, you can see things that were removed highlighted in red, and things that were added highlighted in green.
Resolve conflicts manually
If you choose to resolve manually, you can directly make changes in the Accepted Changes section. Note that if you cancel a manual resolution, you can choose to either keep or discard the changes you have made since starting the manual resolution.
If the visual editor doesn't display something in the split screen UI that you need to manage during a merge, click the Edit Project button and edit the project as usual.
Branch-level Permissions
In your project, you have the ability to assign specific roles such as Editors and Mergers to project members for each branch.
To configure these permissions, navigate to Settings & Integrations > Project Setup > Collaboration > Branch Permissions.
- Editors assigned to a branch have the authority to make direct modifications to the project while working within that branch.
- Mergers on the other hand, are only allowed to merge other branches into that branch. This is especially useful for protected branches where you don't want any users to make direct modifications. Instead, users should only merge other branches into that branch.
Closing Branch
Closing a branch is a common practice after the branch has served its purpose, typically once its changes have been merged into another branch (like the main
or development
branch). By regularly closing inactive or merged branches, you help maintain a clean, efficient, and well-organized project.
When to Close a Branch
- After a Merge: Once the branch’s changes have been merged into the
main
branch (or another target branch), it’s safe to close the branch. This often happens after a feature is complete or a bug is fixed. - Unused Branch: If a branch is no longer needed (e.g., a feature was abandoned or changes were made in another branch), it’s a good idea to close it.
Once a branch is closed, it will no longer appear in the list of active Branches, meaning no further changes can be made. This action is permanent and cannot be undone, so ensure that all necessary work is completed or merged before closing the branch.
Here’s how you can close a branch:
- Review before deletion: Before closing a branch, ensure that all necessary changes have been merged or no longer need to be kept.
- Coordinate with your team: If you’re working in a team, ensure that no one is actively using the branch before you close it, to avoid disrupting ongoing work.
